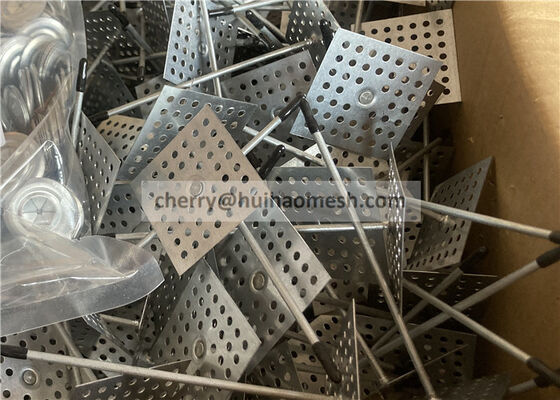

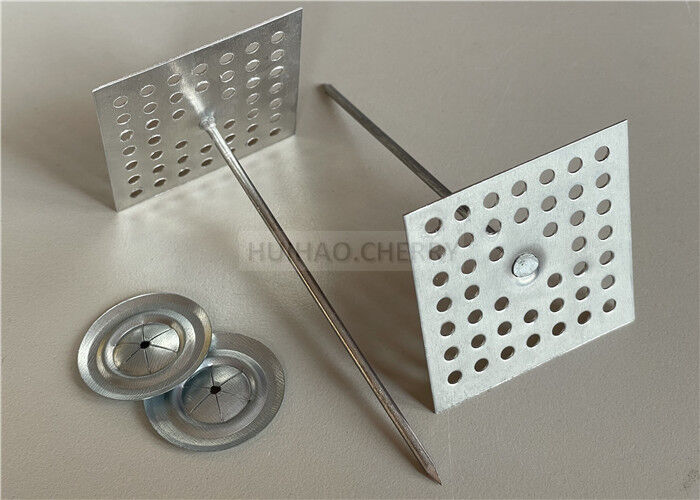

Rockwool Insulation Fixings Perforated Insulation Hangers 12 Gauge With Self Locking Washers

Description Of Rockwool Insulation Fixings Perforated Insulation Hangers 12 Gauge With Self Locking Washers:

Perforated Insulation Hangers are designed for impaling and installing various thermal and acoustical insulation materials to walls and ceilings.

Perforated Insulation Hangers will be used in conjunction with self locking insulation washers, or speed clips, and mounted using general purpose adhesive.

Our Perforated Insulation Hangers are with good quality, the raw material is high corrosion-resistant, the 12gauge nail is firmly riveted on the perforated base, the nail is fully annealed for easy to be bent, the self locking washers are high hardness, which could quickly and firmly lock the nail.

For the Perforated Insulation Hangers, the material, the base size, the nail diameter and length, the self locking washer size and type, and the package all could be customized according to the customer's special requirement.

If you are in need of Perforated Insulation Hangers, please feel free to ask me a price or sample, my email is cherry@huihaomesh.com

Specification Of Rockwool Insulation Fixings Perforated Insulation Hangers 12 Gauge With Self Locking Washers:

Material: Stainless Steel 316L, 316, 304, Galvanized Steel, Copper Coated Steel, Aluminium for pin

               Stainless Steel 316L, 316, 304, Galvanized Steel for base

Base size in common: 40mmx40mm, 50mmx50mm
Pin diameter in common: 2mm, 2.5mm, 2.7mm, 3mm and 10ga (3.4mm)
Pin length in common: 50mm, 63mm, 90mm, 114mm, 125mm, 175mm, 203mm, 230mm etc.

Self locking washer type: round, square, dome capped

Self locking washer size: 22mm, 25mm, 28mm, 30mm, 32mm, 38mm, 40mm, 50mm, 60mm, 63.5mm etc.

Applications Of Rockwool Insulation Fixings Perforated Insulation Hangers 12 Gauge With Self Locking Washers:

	1. Wipe surface clean Perforated Insulation Hangers must be applied to a clean, dry, non-painted surface.
	2. Apply adhesive to the bottom of the perforated insulation hangers Spread adhesive onto the perforated base with a putty knife.
	3. Immediately stick the perforated insulation hangers in place. Press the hangers into position with a twisting motion to assure an even spread of adhesive. The adhesive should protrude through the performation & beyond the edges of base.
	4. Install Insulation Note: allow adhesive to dry thoroughly before hanging insulation, usually 24-72 hours.
	5. Secure with clips Secure insulation in place with a self-locking insulation clip and then bend over or clip off the pins.

Similar Products Of Rockwool Insulation Fixings Perforated Insulation Hangers 12 Gauge With Self Locking Washers:

Huihao Hardware Mesh Product Limited is a professional manufacture of insulation pins and self locking washers, our main products are: perforated base or adhesive base insulation pins for building insulation, CD weld pins and bimetallic welding pins for marine insulation, cup head weld pins for metal ducting insulation, lacing anchors and quilting pins for the fabrication of removable insulation blanket, and various of self locking washers and dome capped washers.

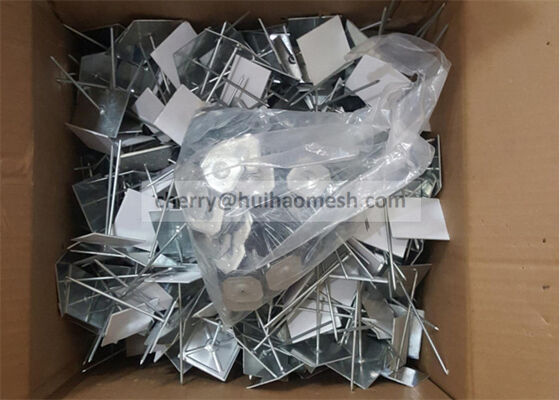

Package Details Of Rockwool Insulation Fixings Perforated Insulation Hangers 12 Gauge With Self Locking Washers:

PIN LENGTH	CARTON SIZE	QTY/CARTON
38MM	41CMX28CMX17CM	1000PCS
50MM-65MM	41CMX28CMX17CM	500PCS
70MM-84MM	30CMX28CMX29CM	500PCS
90MM-120MM	30CMX30CMX30CM	500PCS
130MM-160MM	30CMX30CMX35CM	500PCS
170MM-203MM	30CMX30CMX28CM	250PCS
OTHERS	SUPPORT CUSTOM	SUPPORT CUSTOM

Why Choose Huihao Hardware Mesh Product Limited?

1. We sell what we manufacture, the price is good. 2. We choose the best quality materials to make sure the good quality. 3. We have fully automatic production line to make sure the quick delivery. 4. We have strict quality control system. 5. The material, the size, the package all could be customized according to customer's requirement. 6. We have free samples, for you to check the quality.
